Made of selected low carbon iron wire with precision construction and uniform mesh.
It is used in industries and constructions to sieve grain powder, filter liquid and gas, safety guards on machinery enclosures. Also for wood strips in making wall and ceiling.

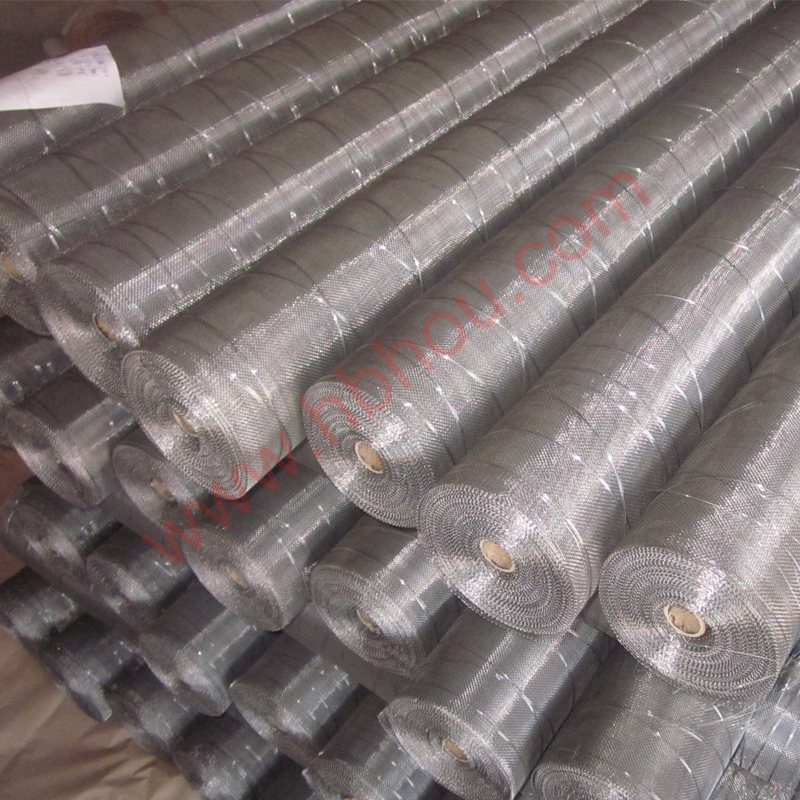

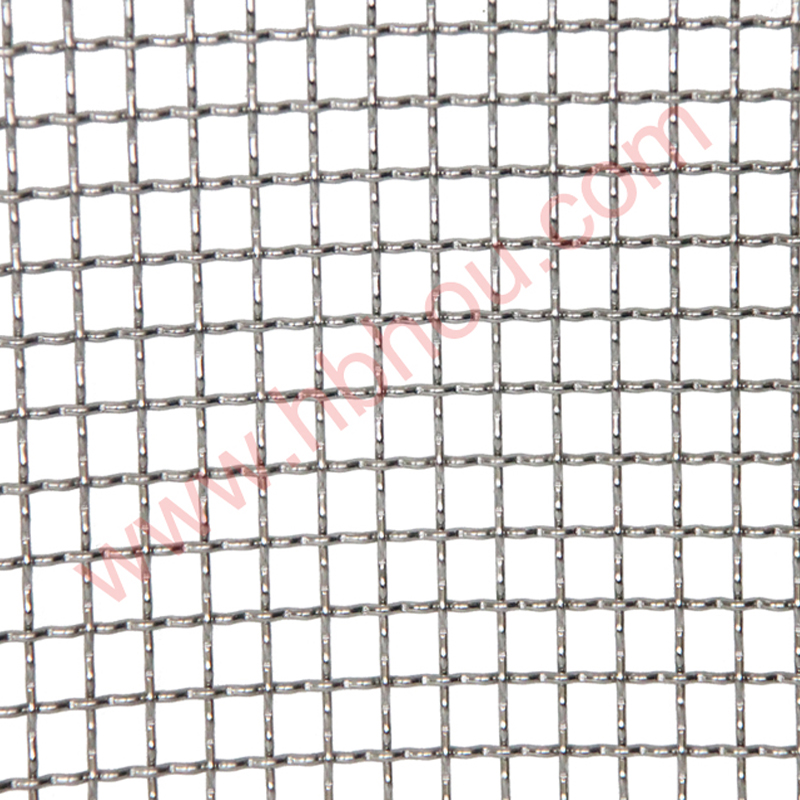

Square wire mesh is also known as screen mesh and crimped wire mesh,
made by ginning through ginning and weaving different types of metal wires of different materials.

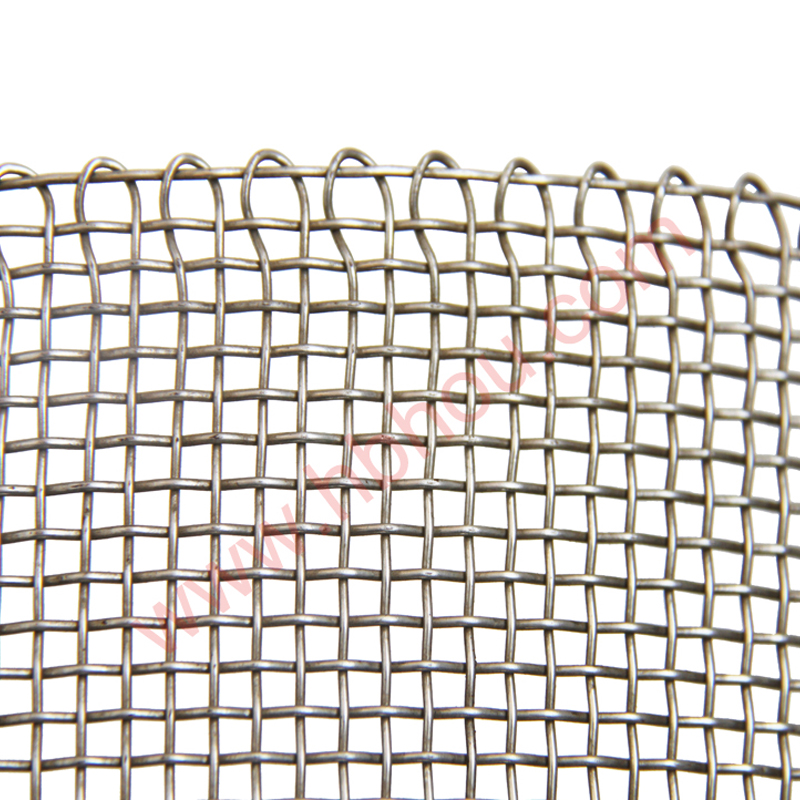

The mesh side could do two different style, one is welded closed, the other is weaving closed. Welded closed price seems better than weaving side close. Please choose based on the actual use area.
Commonly used specifications 1-24 mesh, 1-5 meters wide.
Material: Galvanized wire, stainless steel wire, black iron wire
Precise structure, uniform mesh, good corrosion resistance and durable.
Uses: Widely used in industry and construction, screening sand, filter liquid and gas.
For rubber, plastics, food, pesticides, medicine, telecommunications, textile, food and
other industries for filtering, screening various powder, liquid and gas etc.
Hot dipped galvanized before weaving
Hot dipped galvanized after weaving
Electro galvanized before weaving
Electro galvanized after weaving
Black iron wire weaving
Mesh mm |
Wire Diameter mm |
Roll Height cm |
Roll Length m |
2×2 3×3 5×5 6×6 7×7 8×8 9×9 10×10 12×12 14×14 18×18 20×20 22×22 26×26 30×30 40×40 |
0.7-1.6 0.7-1.6 0.6-1.0 0.6-1.0 0.3-0.9 0.3-0.9 0.3-0.7 0.3-0.7 0.2-0.6 0.2-0.6 0.18-0.5 0.18-0.45 0.18-0.45 0.16-0.4 0.16-0.4 0.16-0.3 |
50 60 80 100 120 150 180 200 |
5 10 15 20 25 30 |
Packing: Each roll plastic film wrapped inside, then pvc cloth outside. Or in pallet.
