Product Details
Application:
a. Timber Construction
b. Solar Powder System
c. Communities and Parks
d. Fencing System and Gate
e. Road and Traffic
f. Sheds and Containers
g. Flag Poles and Marks
Support the base of concrete footing and fence post. It features its specially designed H shape, by which the post can be protected from corrosion and rust. The ”H” shape post anchor not only protects the post from corrosion, but also can be fixed it in the desired place firmly.
It gives the post necessary protection against the attack of termites and moisture. It provides a quick and affordable method of fastening timber post.
H-Form Post Anchor |
Dimension |
Plate |
||
|
A |
B |
C |
Thickness |
mm |
mm |
mm |
mm |
|
71 |
60 |
600 |
||
81 |
60 |
600 |
5 |
|
91 |
60 |
600 |
5.5 |
|
101 |
60 |
600 |
6 |
|
121 |
60 |
600 |
8 |
|
141 |
60 |
600 |

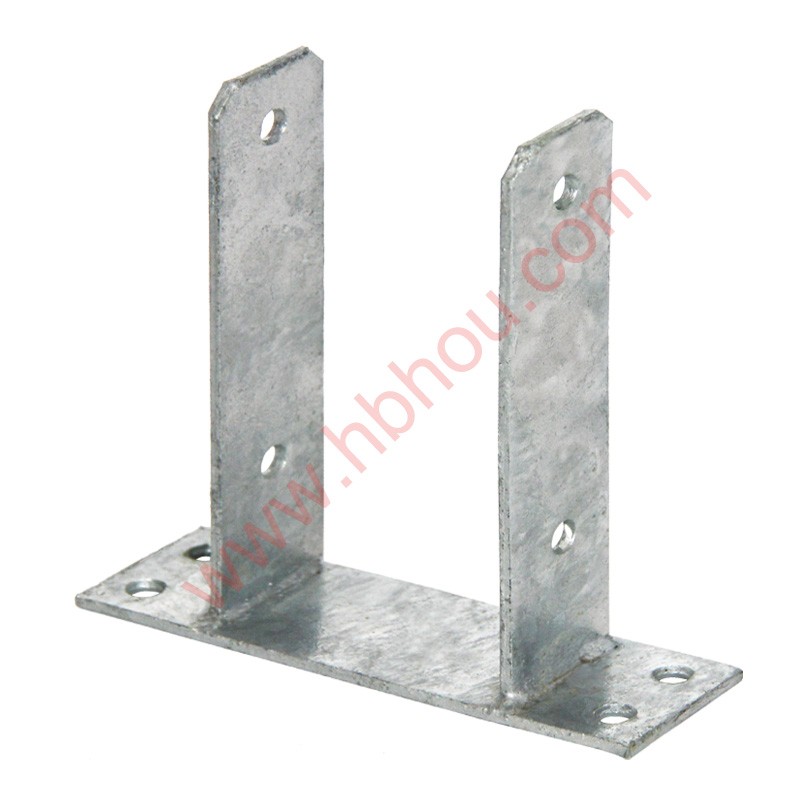

TT-Form Post Anchor |
Dimension |
Plate |
||
|
A |
B |
C |
Thickness |
mm |
mm |
mm |
mm |
|
71 |
200 |
160 |
||
81 |
200 |
170 |
||
91 |
200 |
180 |
4 |
|
101 |
200 |
190 |
4.5 |
|
101 |
200 |
200 |
5 |
|
111 |
200 |
200 |
5.5 |
|
121 |
200 |
200 |
||
121 |
200 |
210 |
||
141 |
200 |
230 |

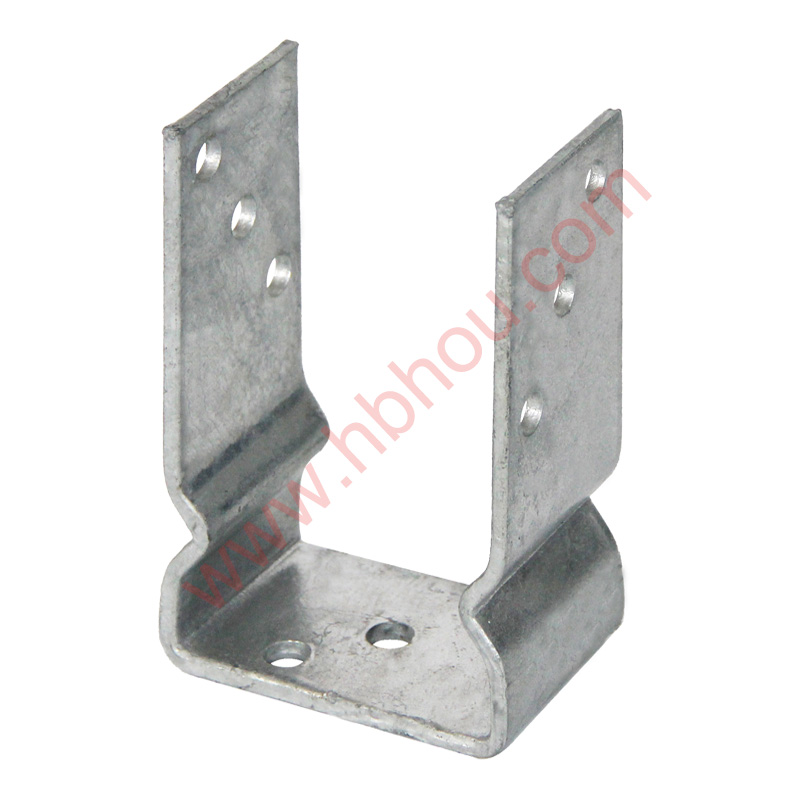

U-Form Post Anchor |
Dimension |
Plate |
||
|
A |
B |
C |
Thickness |
mm |
mm |
mm |
mm |
|
71 |
60 |
150 |
||
81 |
60 |
150 |
4 |
|
91 |
60 |
150 |
4.5 |
|
101 |
60 |
150 |
5 |
|
121 |
60 |
150 |
5.5 |
|
141 |
60 |
150 |

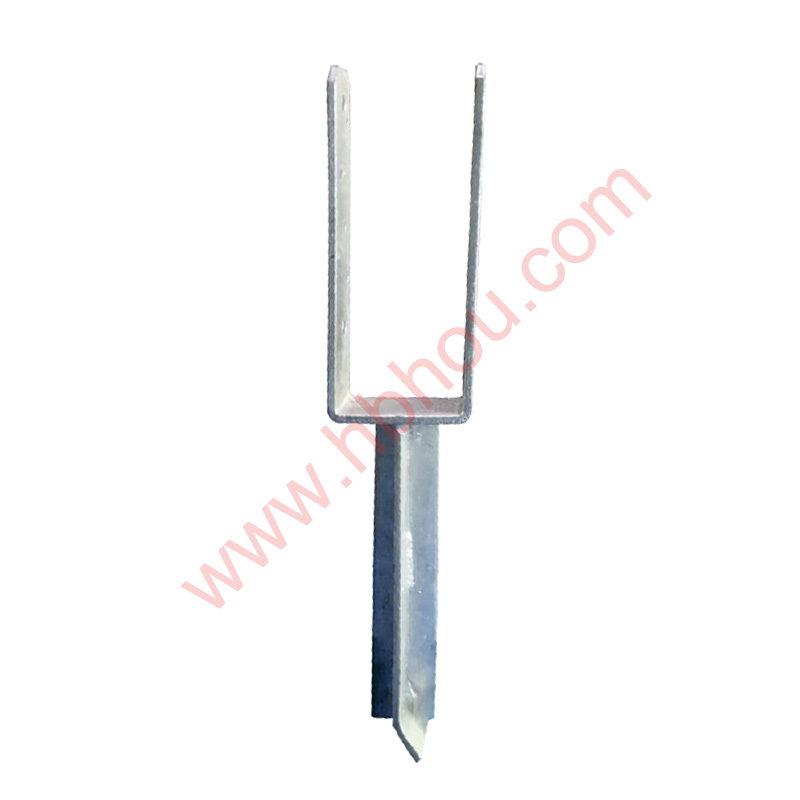

U-Form With T Spike |
Dimension |
Plate |
Spike |
||
|
A |
B |
C |
Thickness |
|
mm |
mm |
mm |
mm |
mm |
|
71 |
60 |
150 |
5 |
T35x30x4.5 |
|
81 |
60 |
150 |
5 |
T35x30x4.5 |
|
91 |
60 |
150 |
5 |
T35x30x4.5 |
|
101 |
60 |
150 |
5 |
T35x30x4.5 |
|
121 |
60 |
150 |
5 |
T35x30x4.5 |
|
141 |
60 |
150 |
5 |
T35x30x4.5 |
Packing: Bulk in pallet, or packed in carton for on-line sale.
Or first in bundle or carton, then in pallet.
Length, width and other dimensions can be customized.
Or If you have any idea, we could design and produce accordingly.
