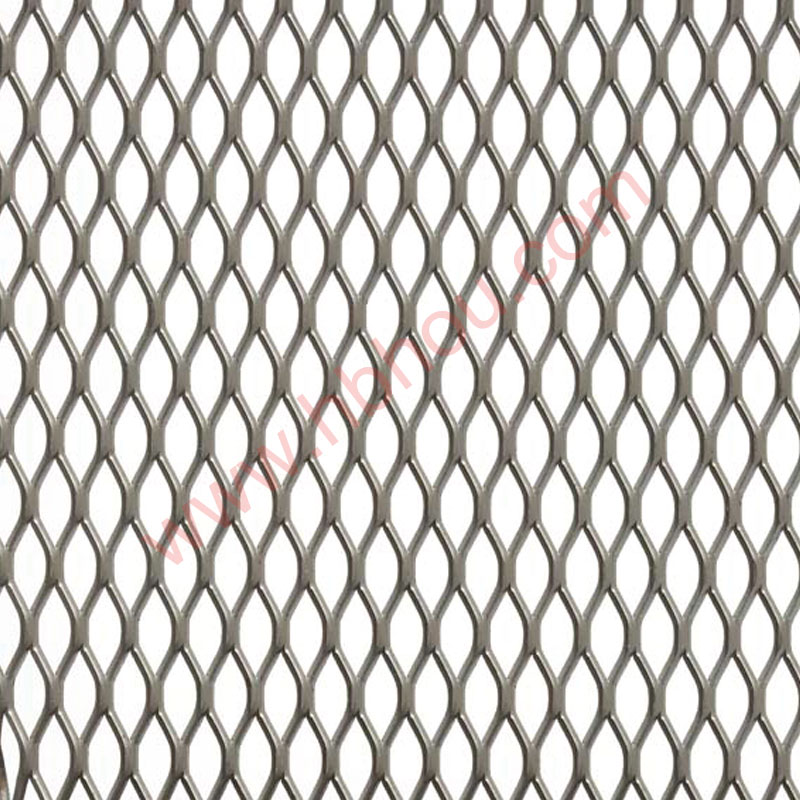

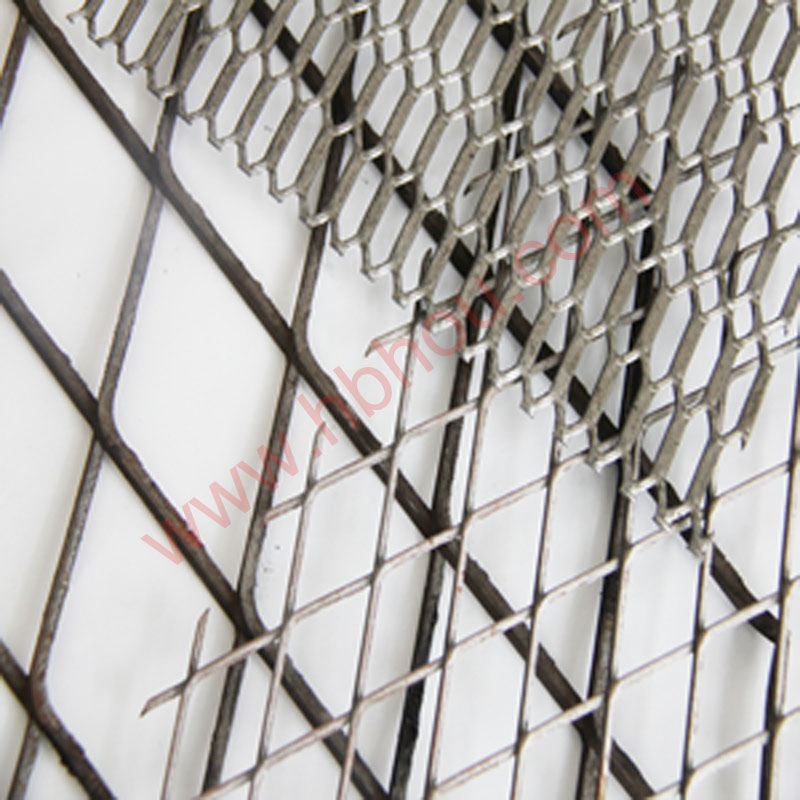

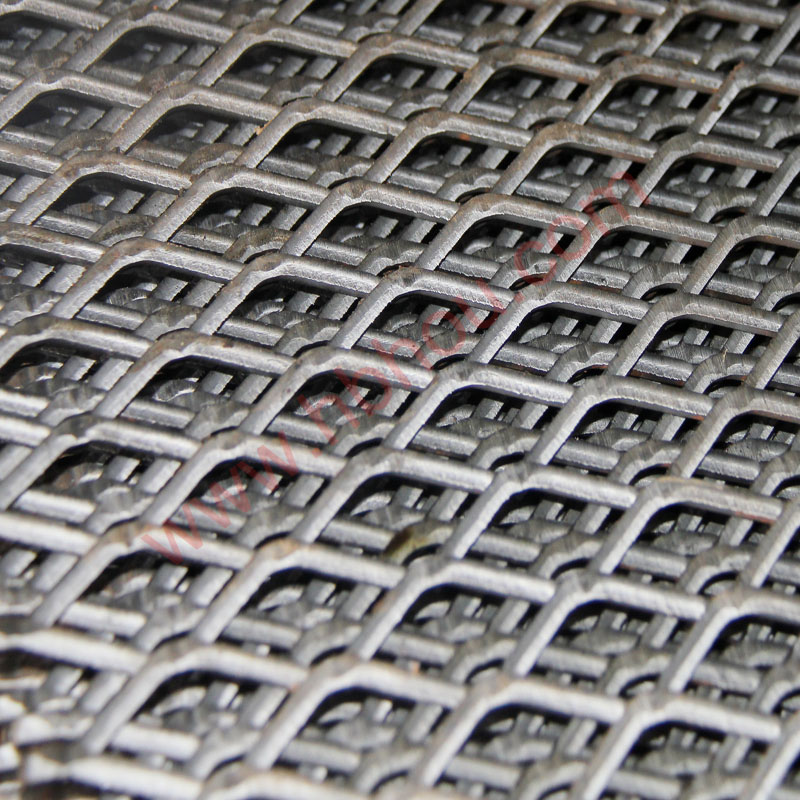

Expanded metal mesh is also called pulled plate wire mesh.
A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation.
It is stronger, lighter in weight and more rigid.
Material: Stainless steel plate, Aluminum plate, Copper plate, Iron Plate, Al-Mg alloy etc.
Good strength and weld ability. Zinc galvanized finish provides corrosion resistance.
LWD: 4.5-200mm
SWD: 2.5-80mm
SWM: Center from node to node of the length of the short diagonal.
LWM: Center from node to node of the length of the long diagonal.
SWD: The length of the short diagonal of the hole.
LWD: The length of the long diagonal of the hole.
Strand: Make a silk stem length of the metal plate used.
Bond: Two-node connections.
Thickness | SWM | LWM | Strip |
mm | mm | mm | mm |
0.5 | 2.5 | 4.5 | 0.5 |
0.5 | 10 | 25 | 0.5 |
0.6 | 10 | 25 | 1.0 |
0.8 | 10 | 25 | 1.0 |
1.0 | 10 | 25 | 1.1 |
1.0 | 15 | 40 | 1.5 |
1.2 | 10 | 25 | 1.1 |
1.2 | 15 | 40 | 1.5 |
1.5 | 15 | 40 | 1.5 |
1.5 | 23 | 60 | 2.6 |
2.0 | 18 | 50 | 2.1 |
2.0 | 22 | 60 | 2.6 |
3.0 | 40 | 80 | 3.8 |
4.0 | 50 | 100 | 4.0 |
4.5 | 50 | 100 | 5.0 |
5.0 | 50 | 100 | 5.0 |
6.0 | 50 | 100 | 6.0 |
8.0 | 50 | 100 | 8.0 |
Other specification and size can be produced as customer's request.
